Mechanical Testing - X Direction
Protocol.
When evaluating the mechanical properties of printed parts, it may be necessary to test the main printing orientations. Pollen AM offers a test protocol to evaluate the X, Y, Z45 and Z 3D printing directions.
Buildplate preparation - X direction
The tensile specimen is printed in the direction of the stress. This printing direction is generally the one that achieves the best tensile strength properties.

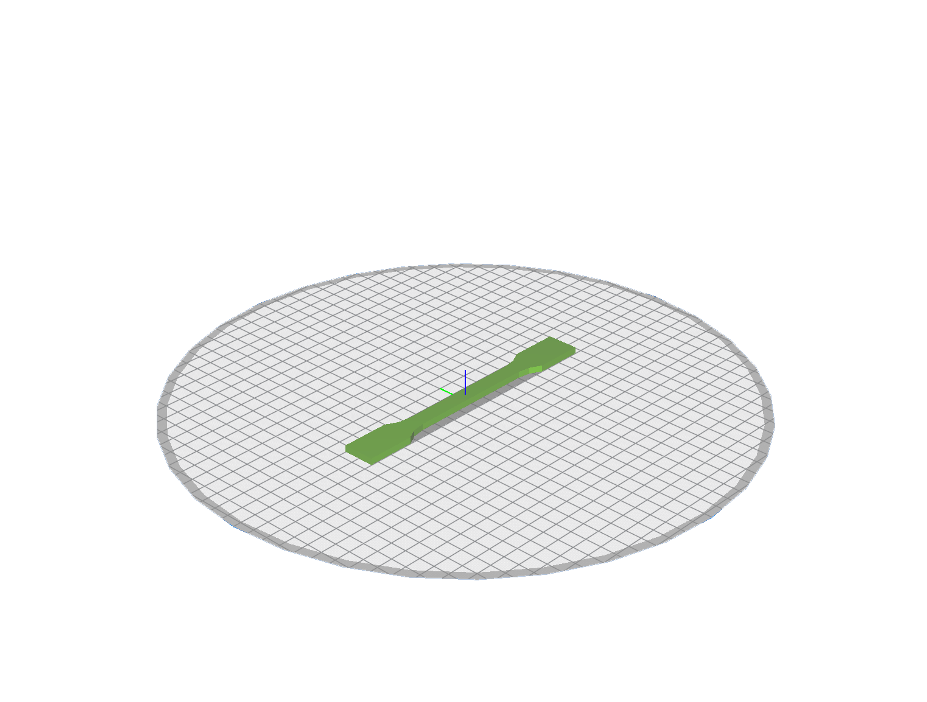

Buildplate presentation. Axonometric view

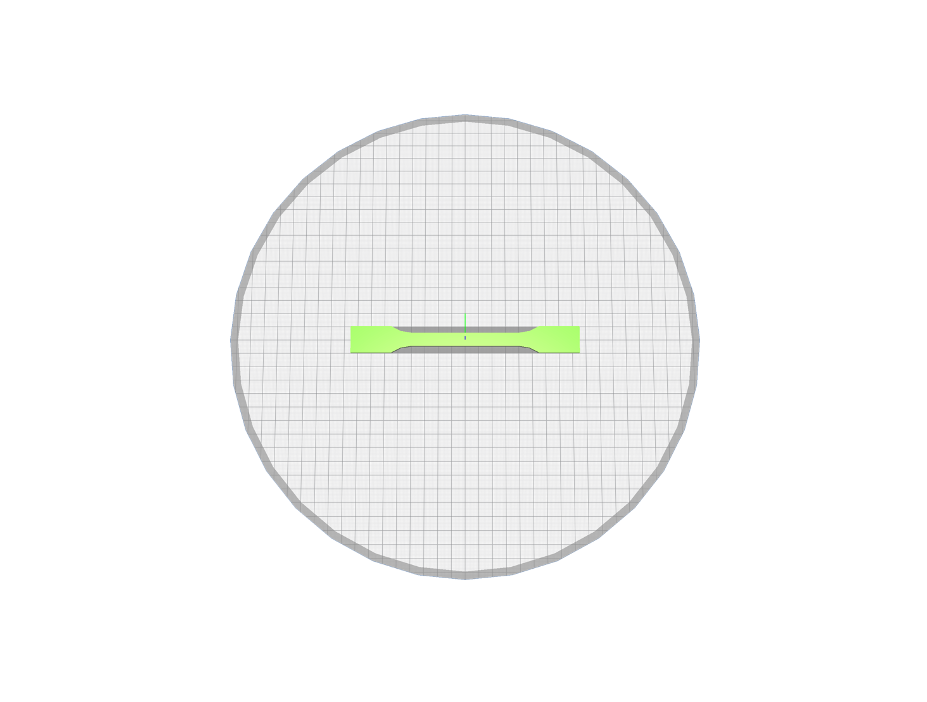

Buildplate presentation. Top view

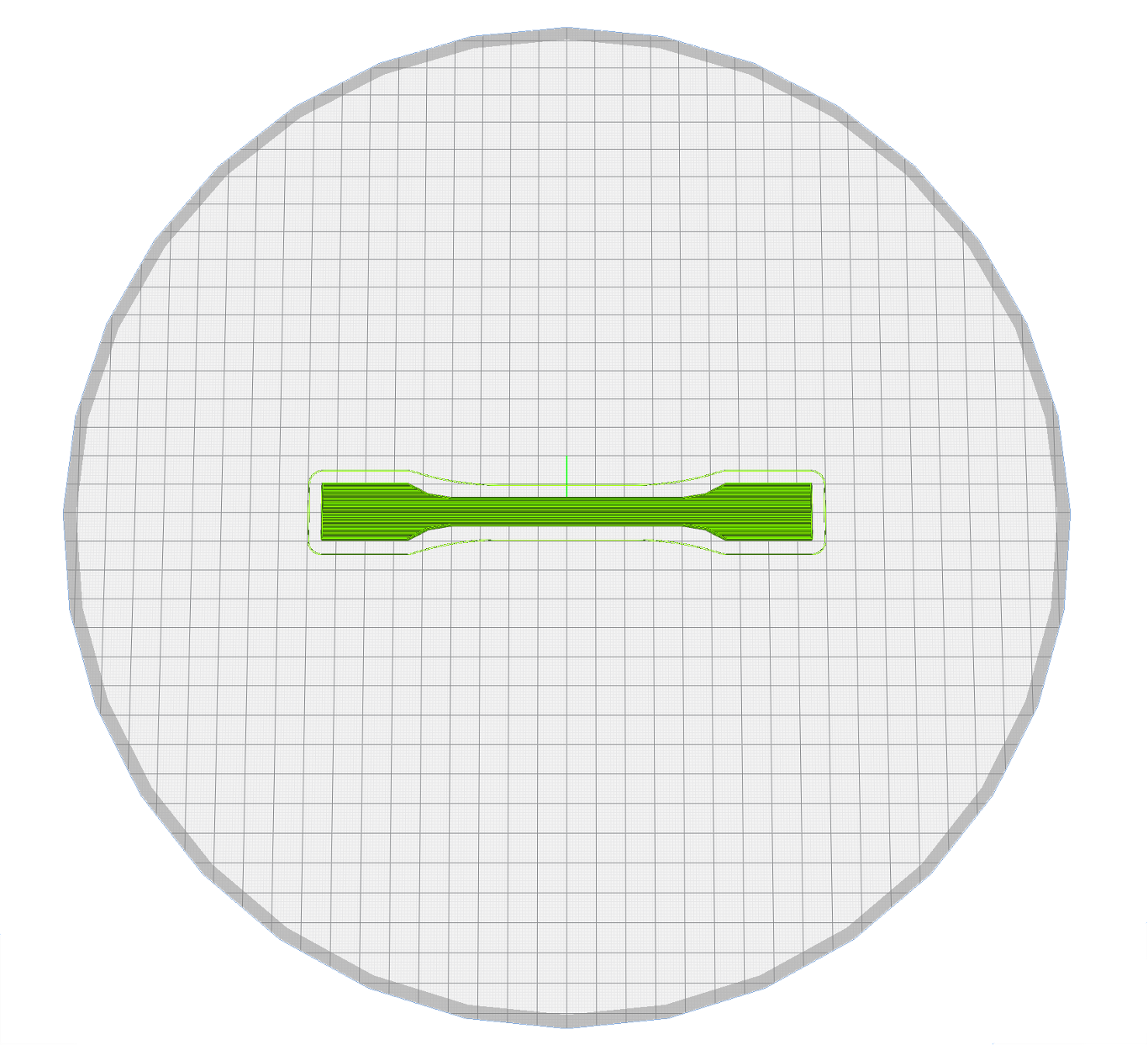

Slicing presentation. Top view
The infill parameters used for this configuration are :
- Infill pattern : Lines
- Infill direction : 90
- Infill density : 100
- Wall line count : 2
It is possible to test different configurations to analyse their impact on mechanical tensile properties.
Download the Type I tensile specimen
Download the Type IV tensile specimen
