pam o2 HT
Engineering & performance application
- Open to materials
- Industrial pellets
- Cheapest material
- Up to 2 materials
- Properties combination
- Access to parameters
3D printer specifications
Physical Dimensions
| Diameter | 834 mm |
| Height | 925 mm |
| Weight | 95 Kg |
Main specifications
| 3D printing process | PAM |
| Number of extruder | 2 HT |
| Compatible materials | Thermoplastic materials (Injection moulding grades) |
| Maximum print volume | Ø300 x H300 mm (no radiant disc) Ø270 x H300 mm (with radiant disc). |
| Nozzles sizes | Ø 0.25 - 0.40 - 0.60 - 0.80 - 1.00 - 1.20 - 1.50 - 2.00 |
| Stepper motor resolution | 40µm (Z) and 5µm (X,Y) |
| Maximum extrusion temperature | 450°C |
| Maximum print bed temperature | 150°C and 200°C in options |
| Heating room | up to 90°C |
| Radiant disc | up to 300°C |
| Supplied Software | Honeyprint & Cura by Pollen AM |
- Material research
- Multi-extrusion research
- Prototypes & concept validation
- Material validation
- Functional testing
- On demand & local production
- Support to industrialization
- Tools, jigs & fixtures
- and so many more ...

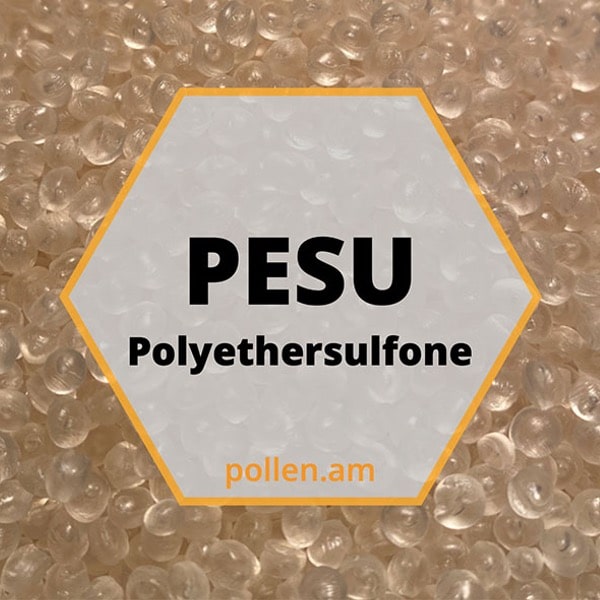

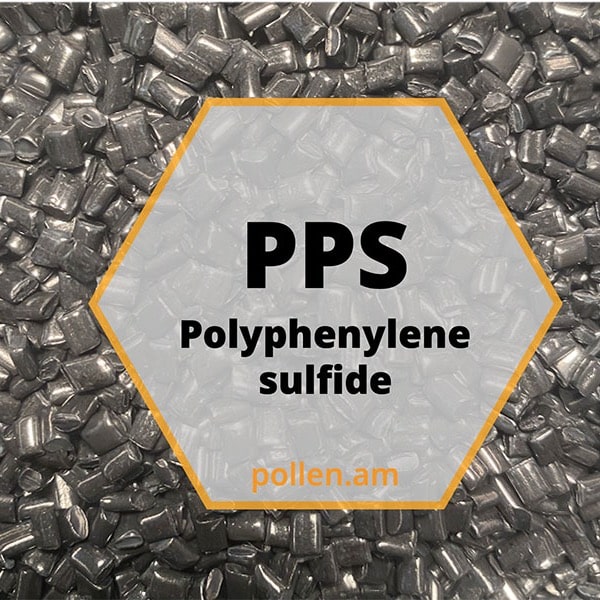

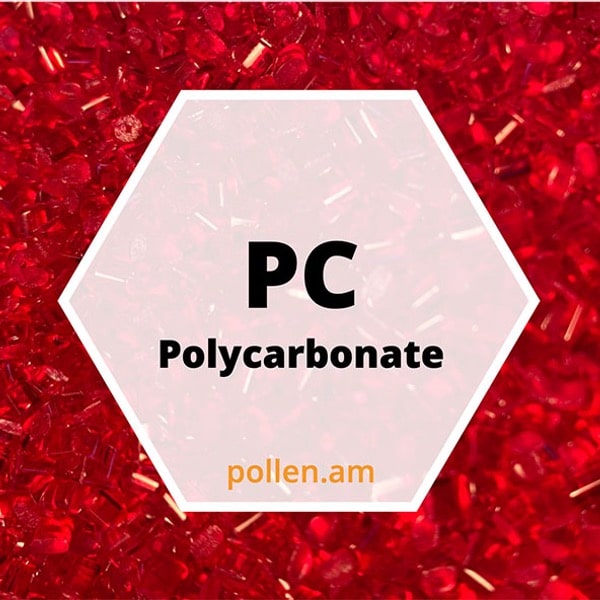

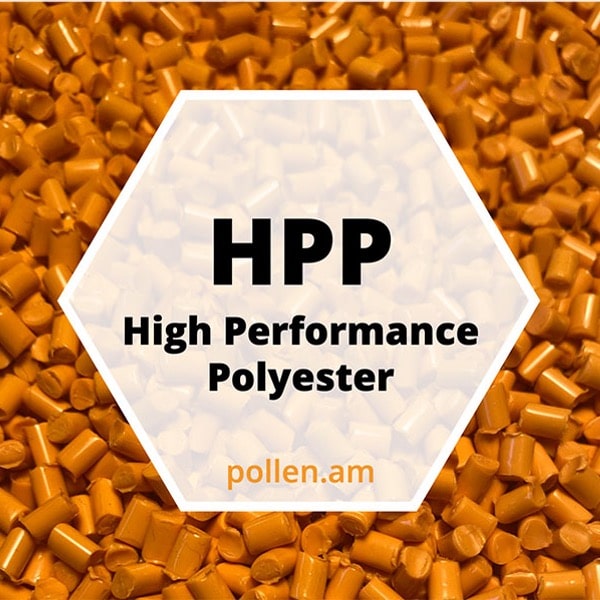

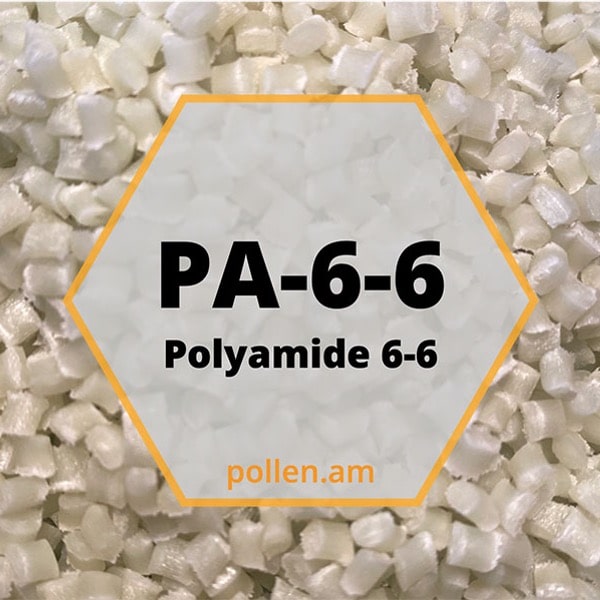

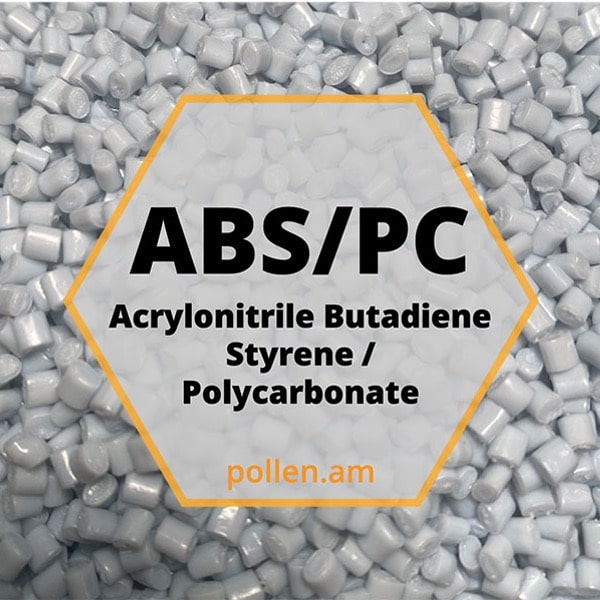

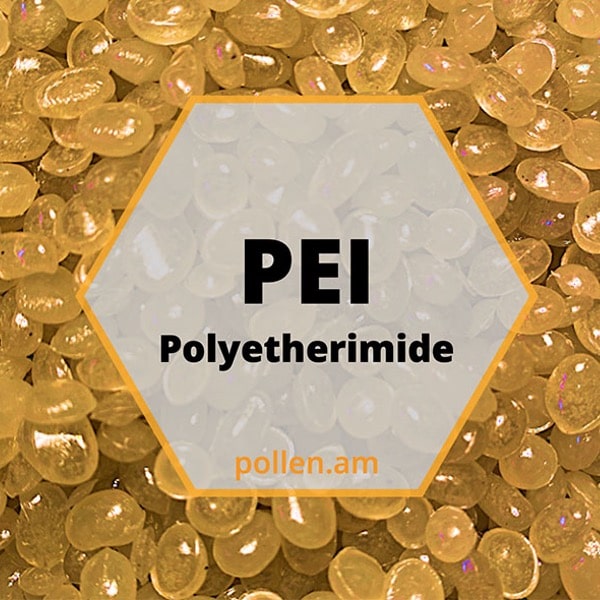

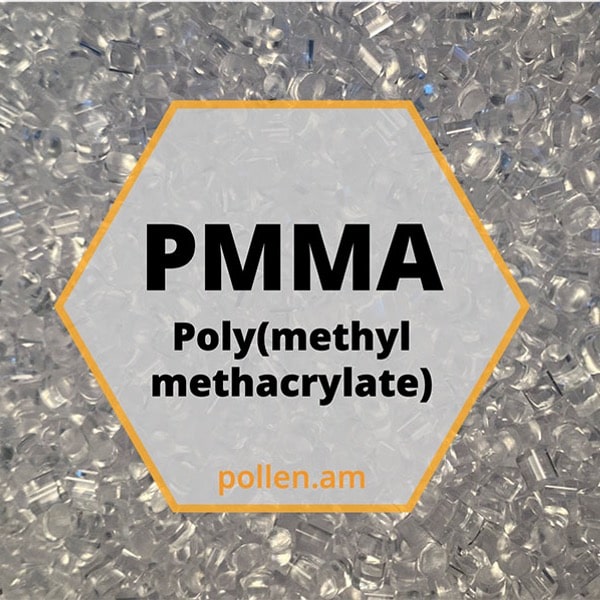

The widest range of performance thermoplastics available
Gain access to an exhaustive industrial materials catalog, by using feedstocks already validated, by validating new ones, or simply by creating your own formulations.
3D printing industrial thermoplastics,
is possible!
From standard to high performance materials.
Let’s dive into the possibilities offered by PAM
From pellets to object, PAM technology offers the most direct process to high performances end-parts.
Metals Ceramics Commodity Elastomers Performance High Performance.
