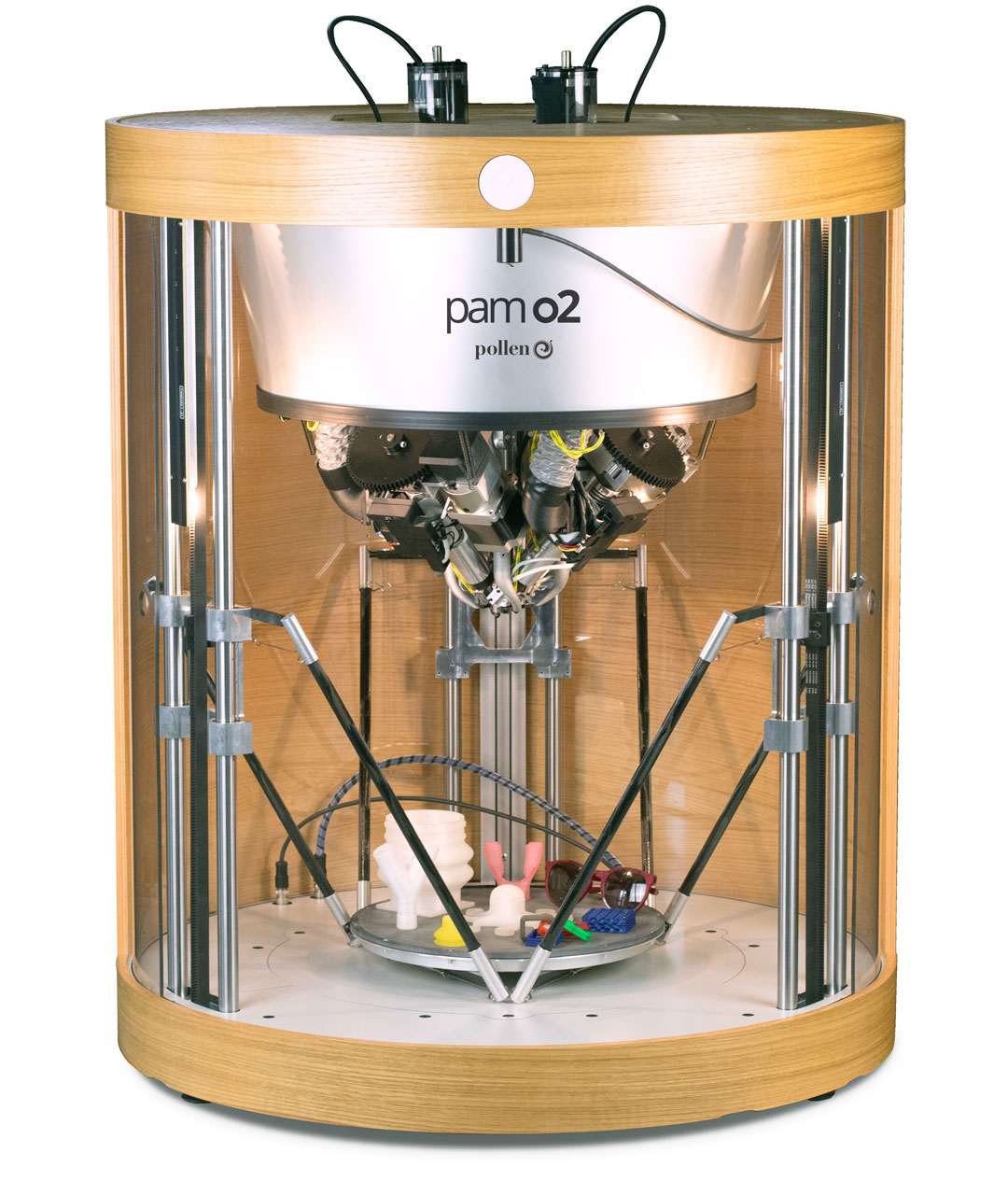

pam o2
Standard thermoplastics & elastomers
- Largest elastomer compatibility
- Injection Moulding grades
- Properties combination
- Up to 4 materials
- From prototyping to small series
- Mechanical & aesthetical quality output
3D printer specifications
Physical Dimensions
| Diameter | 789 mm |
| Height | 925 mm |
| Weight | 75 Kg |
Main specifications
| 3D printing process | PAM |
| Number of extruder | 4 |
| Compatible materials | Standard thermoplastics & Thermoplastic elastomers (Injection moulding grades) |
| Print volume | Ø 300 x H 300 mm |
| Nozzles sizes | Ø 0.25 - 0.30 - 0.40 - 0.60 - 0.80 - 1.00 - 1.20 - 1.50 - 2.00 |
| Stepper motor resolution | 40µm (Z) and 5µm (X,Y) |
| Maximum extrusion temperature | 350°C |
| Maximum print bed temperature | 120° |
| Supplied Software | Honeyprint & Cura by Pollen AM |
- Material research
- Multi-extrusion research
- Prototypes & concept validation
- Material validation
- Functional testing
- On demand & local production
- Support to industrialization
- Tools, jigs & fixtures
- and so many more ...

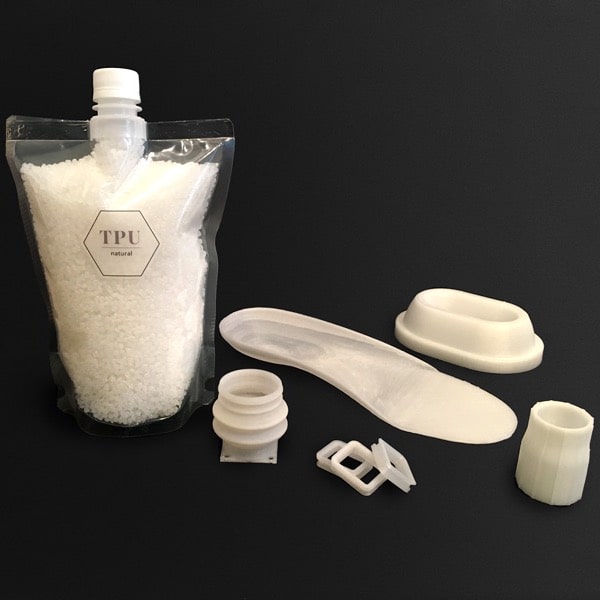

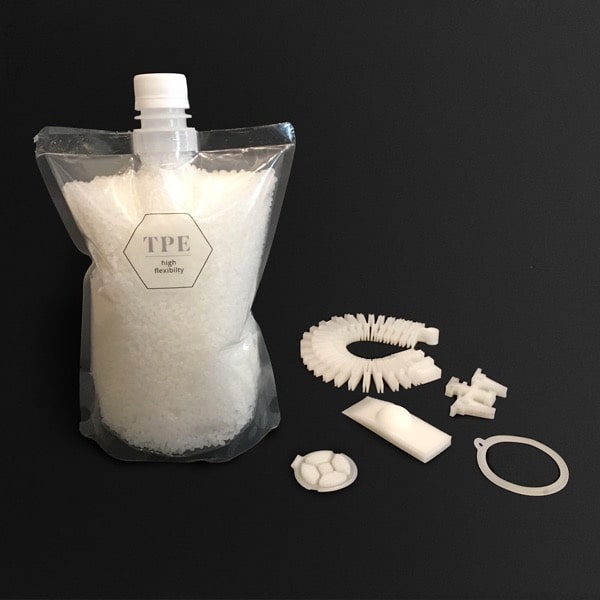

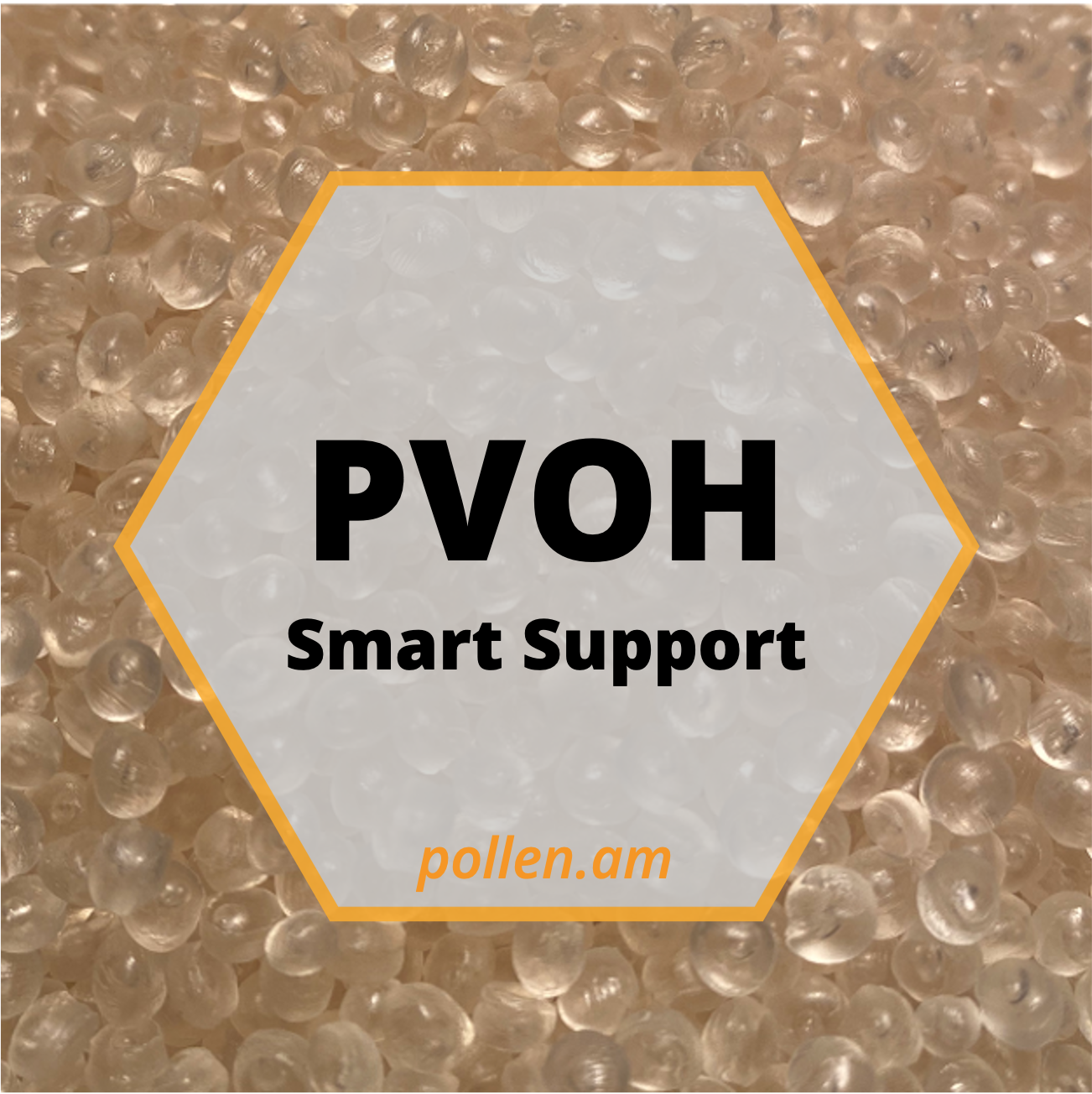

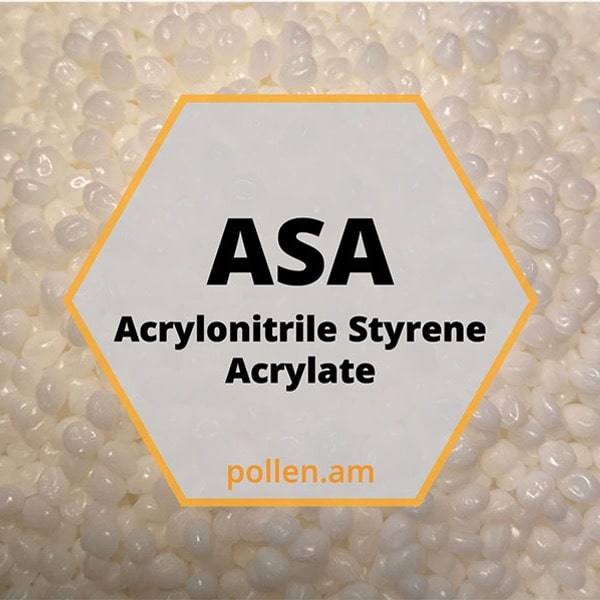

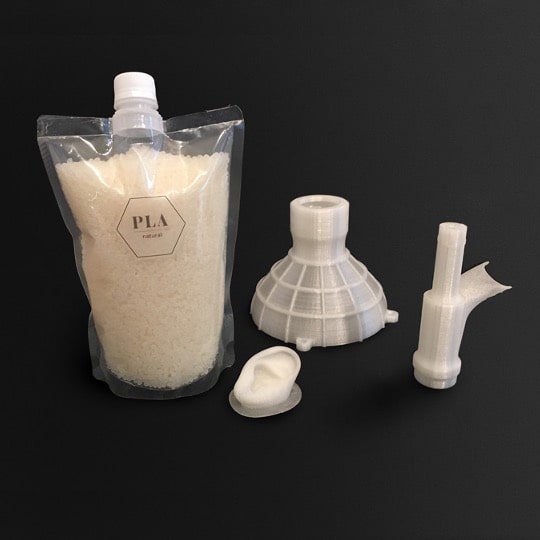

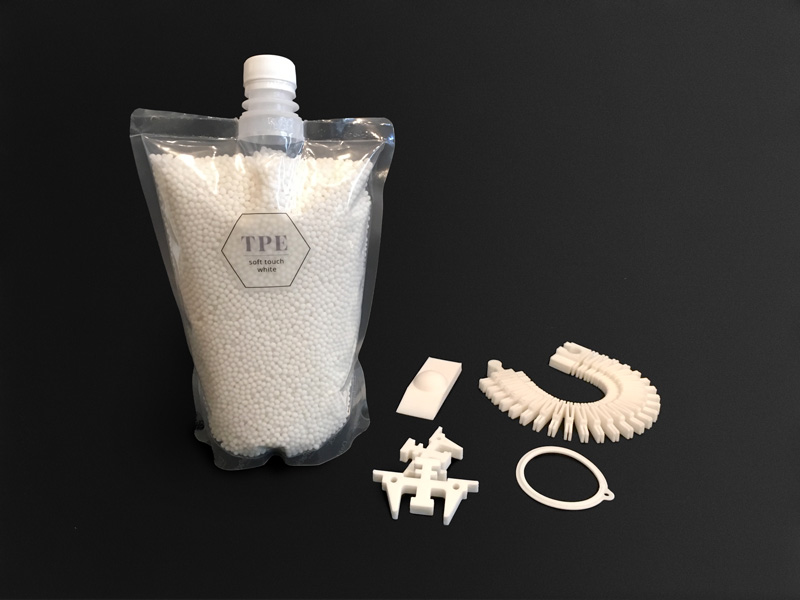

The widest range of standard thermoplastics & elastomers available
Gain access to an exhaustive industrial materials catalog, by using feedstocks already validated, by validating new ones, or simply by creating your own formulations.
3D printing industrial thermoplastics,
is possible!
With no shore hardness limit.
Let’s dive into the possibilities offered by PAM
From pellets to object, PAM technology offers the most direct process to high performances end-parts.
Metals Ceramics Commodity Elastomers Performance High Performance.
