TPE Ultra Flex - 30 Shore 00

TPE Ultra flex is a very soft material for applications of consumer daily life with regulatory requirements. It has an optimized mechanical properties at low hardness resistant to abrasion and can be associated with PP.

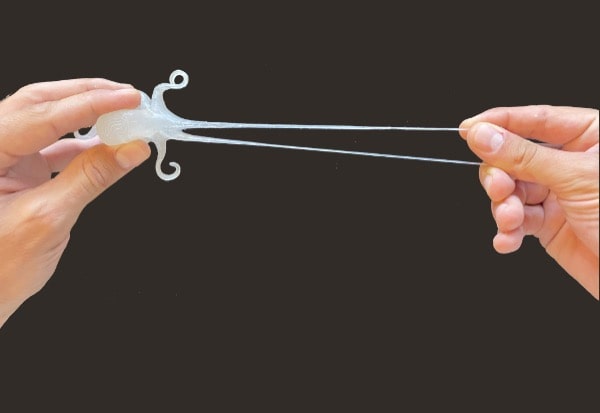

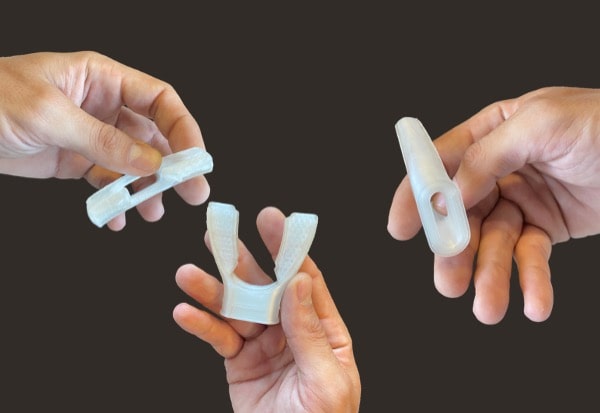

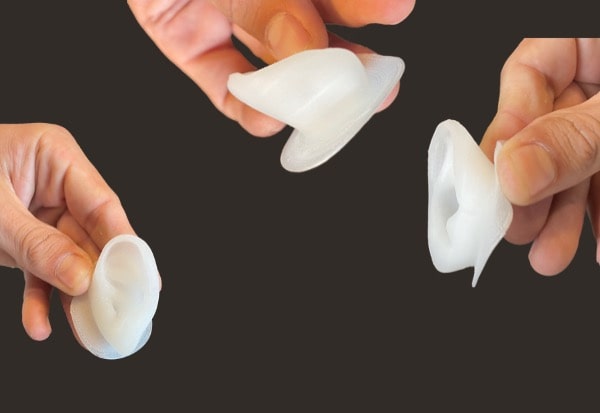

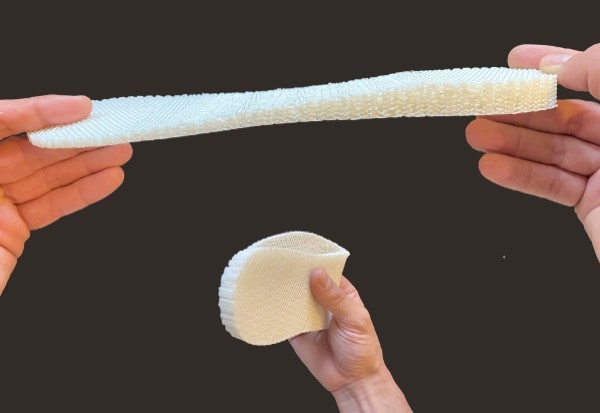

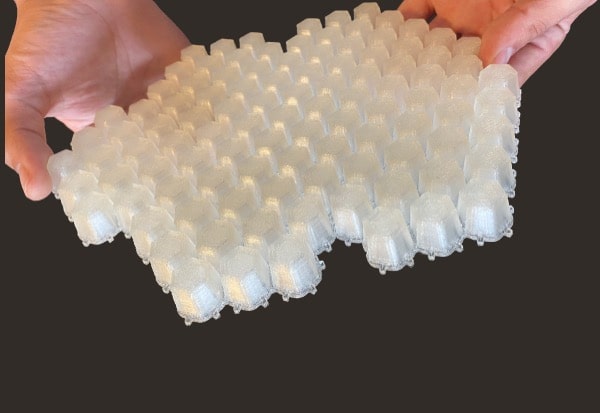

Suitable for applications such as baits, toys, cushioning, protectors, grip applications, etc.


Download the data sheet



Main 3D printing parameters

Advised nozzles Brass 0.6 | 0.8 | 1.0 | 1.2 mm
Printing temperatures 190 - 230°C
Buildplate substrate PEI film | PP film
Builplate temperature 50 - 80°C

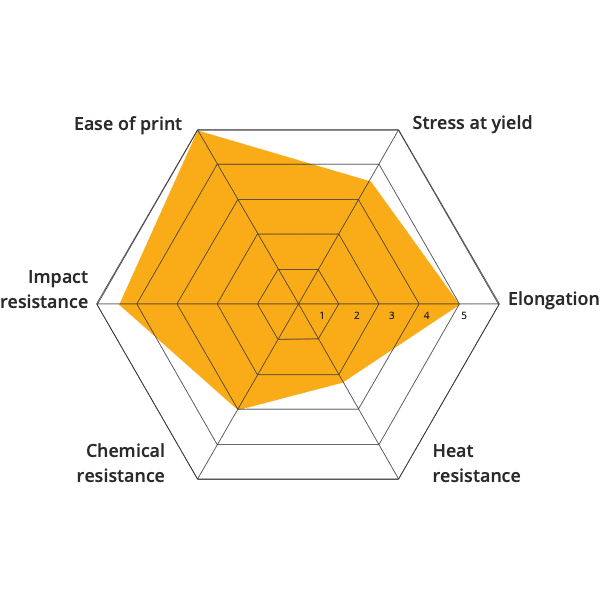

Typical properties

Hardness
30 Shore 00
Tear resistance
3.0 N/mm
Tensile strength
1,5 MPA
Elongation at break
800%

Typical properties; not to be construed as specifications.
ISO 34-1 Methode B, DIN 53504/ISO 37.
