Titanium alloy - Ti6Al4V

Titanium alloy - Ti6Al4V (3.7165)

Ti-6Al-4V, also sometimes called TC4 or Ti64, is an alpha-beta titanium alloy with a high strength-to-weight ratio and excellent corrosion resistance. It is one of the most commonly used titanium alloys and is applied in a wide range of applications where low density and excellent corrosion resistance are necessary.

This superalloy is widely used in aerospace industry and biomechanical applications (implants and prostheses).


Download the datasheet



Composition

Element Fe O Al V C Ti
Content 0,3% max 0,25% max 5,5 - 6,5% 3,5 - 4,5% 0,08% max Balance

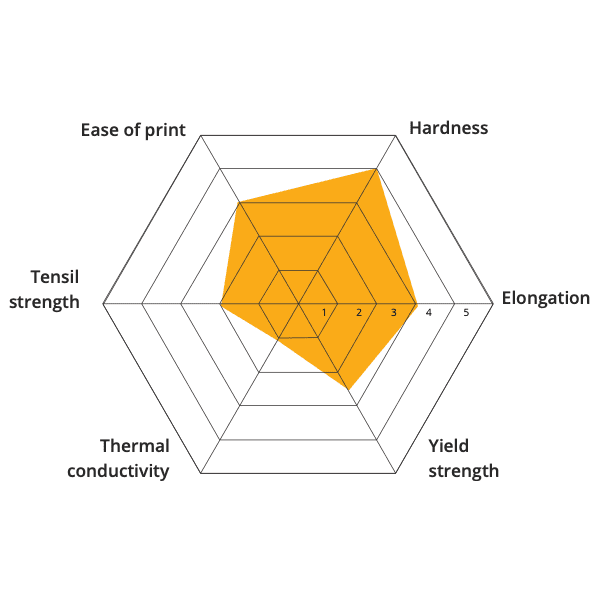

Typical properties

Yield Strength (Rp0.2)
> 750 MPa
Strength at Break (Rm)
> 850 MPa
Tensile Elongation
> 10 %
Hardness
349 HV

Typical properties; not to be construed as specifications.
EN ISO 6892-1, EN ISO 6507-1, EN ISO 6508-1.
