Stainless steel - 316L

Stainless steel - 316L (1.4404)

It is a marine grade stainless steel, the second most common austenitic stainless steel after 304 stainless steel. The molybdenum present in its alloying constituents provides greater corrosion resistance than 304. 316L grade is the low carbon version of 316 stainless steel.

It is commonly used in chemical and petrochemical industry, in food processing, pharmaceutical equipment, medical devices, in marine applications, etc.


Download the data sheet



Composition

Element Cr Ni Mn Si Cu C Fe
Content 16 - 18,5% 10 - 14% 2,0 - 3,0% 2,0% max 1,0% max 0,03% max Balance

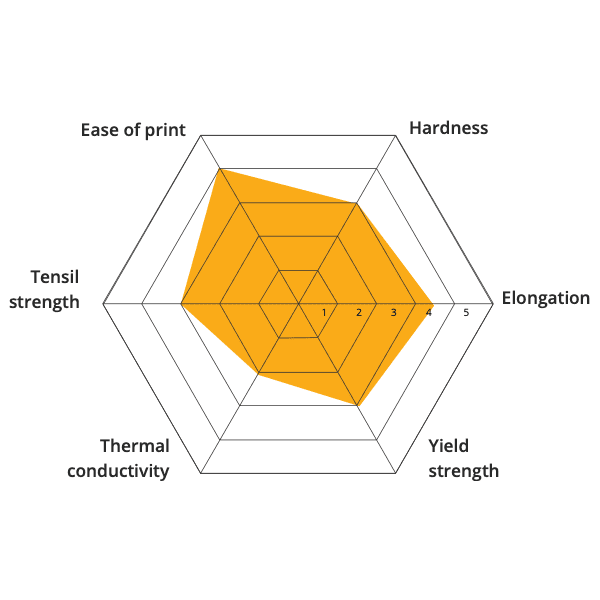

Typical properties

Yield Strength (Rp0.2)
> 140 MPa
Strength at Break (Rm)
> 450 MPa
Tensile Elongation
> 40 %
Hardness
> 120 HV

Typical properties; not to be construed as specifications.
EN ISO 6892-1, EN ISO 6507-1, EN ISO 6508-1.
