Silicon nitride

Silicon nitride (Si3N4)

Silicon nitride is a chemical compound of the elements silicon and nitrogen with the chemical formula Si3N4. It features an excellent combination of material properties such as high fracture toughness, good thermal shock resistance and good flexural strength. They are nearly as light as silicon carbide (SiC).

Its good mechanical properties make Si3N4 predestined for applications as balls and rolling elements for light and extremely precise bearings, heavy-duty ceramic forming tools and automotive components subject to high stress.

Download the datasheet



Composition

Element Si2N4 Al Y Ti O C
Content > 87.2% 2.0 - 3.5% 4.0 - 5.0% 1.0 - 1.5% 4.5 - 6.0% 0.3 - 0.8%

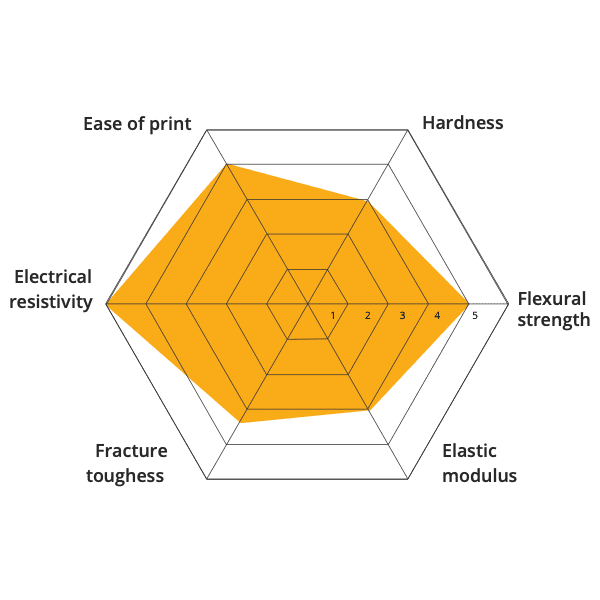

Typical properties

Flexural Strength
> 800 MPa
Elastic modulus
315 GPa
Density
2,50 g/cm3
Hardness
1 600 HV

Typical properties; not to be construed as specifications.
EN ISO 6507, ASTM D790.
