Part presentation

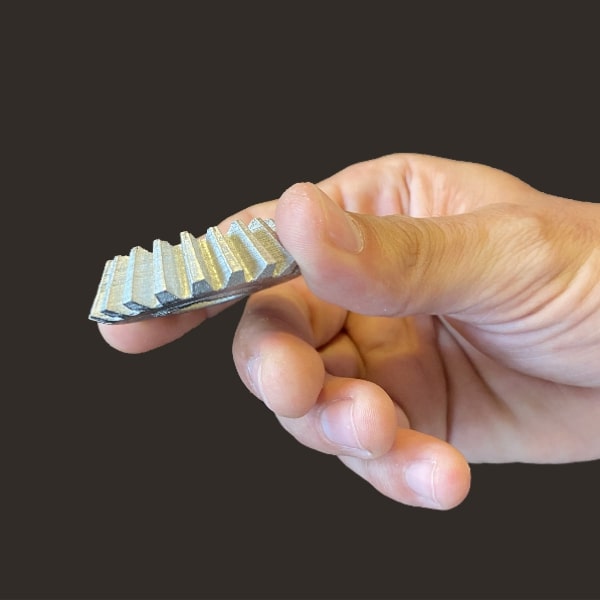

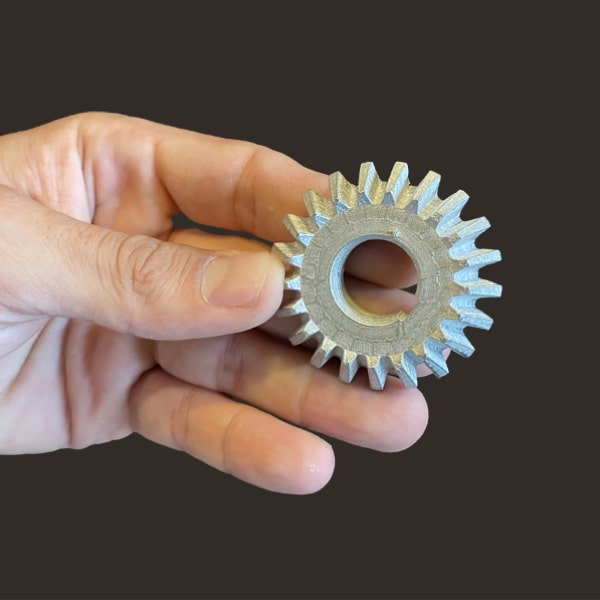

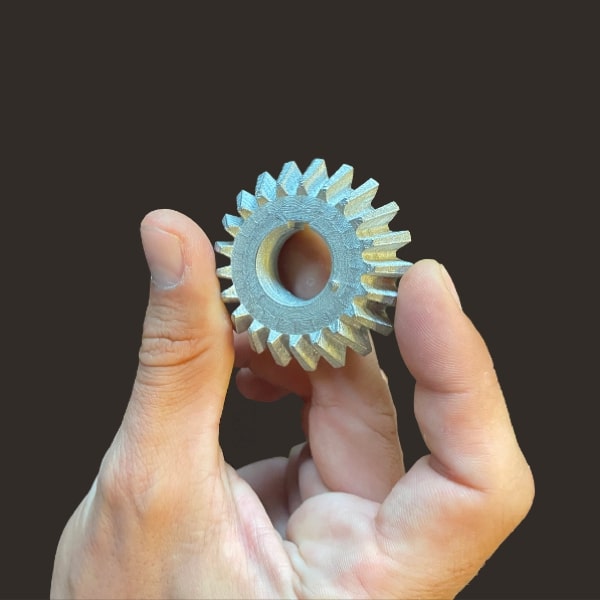

Manufactured with Pam Series MC, the 3D printer dedicated to metal and ceramic applications, this gear is presented at the sintered stage (after debinding & sintering steps), when the part is fully metallic, with lowest porosity.

The debinding and sintering operations have been made by Alliance MIM, tthe French MIM parts production industrial specialist.
Gears are good candidates for 3D printing, their geometries are adapted to the 3D printing process and they generally don't require support structures. When produced in small and medium scale, Pam’s process allows to significantly reduce the production & material costs

Material information
  • Supplier: Polymim
  • Material: Stainless Steel
  • Grade: 316L (1.4404)

Contact us

Watch the video

Process configuration

  • 3D printer: Pam Series MC
  • Printing time: 5h 20 mn
  • Nozzle size: Ø 0.4 mm
  • Part weight: 85.12 g
  • Layer height: 0.2 mm
  • Material cost: € 4.26
