Small Stainless-steel Bracket

Small Stainless-steel Bracket Pollen AM  mim metal cim ceramic technical 3D printing 3D printer industrial pellets granules extrusion small series medium series stainless steel thermoplastic granules open to materials
Small Stainless-steel Bracket Pollen AM  mim metal cim ceramic technical 3D printing 3D printer industrial pellets granules extrusion small series medium series stainless steel thermoplastic granules open to materials
Small Stainless-steel Bracket Pollen AM  mim metal cim ceramic technical 3D printing 3D printer industrial pellets granules extrusion small series medium series stainless steel thermoplastic granules open to materials
Part presentation

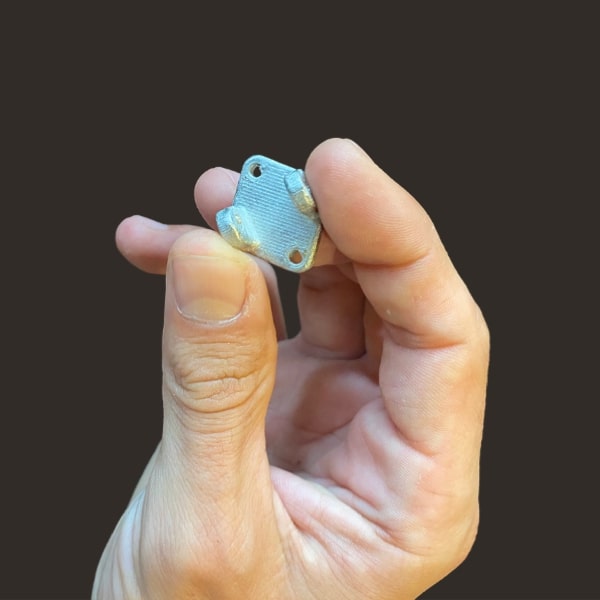

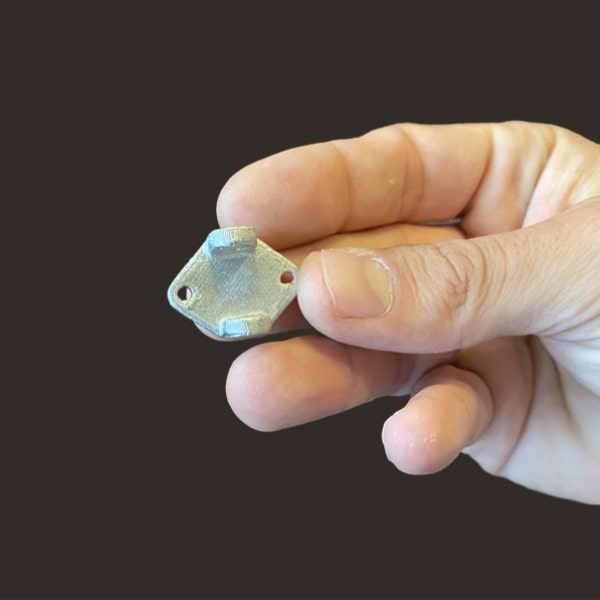

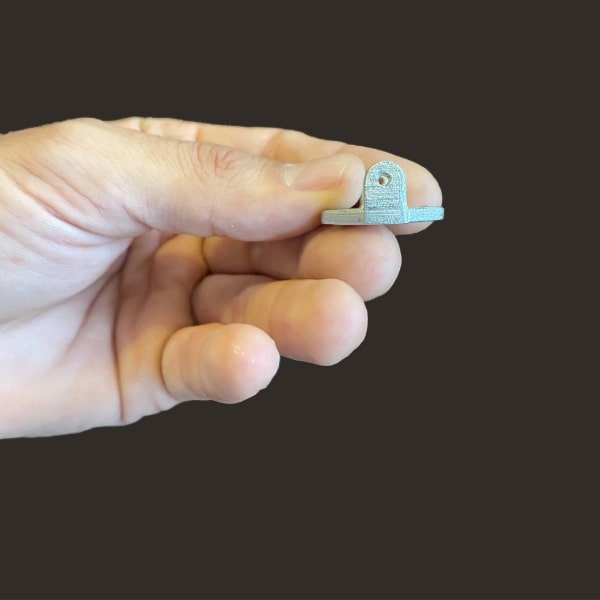

Manufactured with Pam Series MC, the 3D printer dedicated to metal and ceramic applications, this bracket is presented at the sintered stage (after debinding & sintering steps), when the part is fully metallic, with lowest porosity.

The debinding and sintering operations have been made by Alliance MIM, the French MIM parts production industrial specialist.

Brackets are good candidates for 3D printing, their geometries are adapted to the 3D printing process and they generally don't require support structures. When produced in small and medium scale, Pam’s process allows to significantly reduce the production & material costs.

Material information
  • Supplier: Polymim
  • Material: Stainless Steel
  • Grade: 316L (1.4404)

Contact us

Watch the video

Process configuration

  • 3D printer: Pam Series MC
  • Printing time: 35 mn
  • Nozzle size: Ø 0.4 mm
  • Part weight: 11.2 g
  • Layer height: 0.2 mm
  • Material cost: € 0.89
