Part presentation

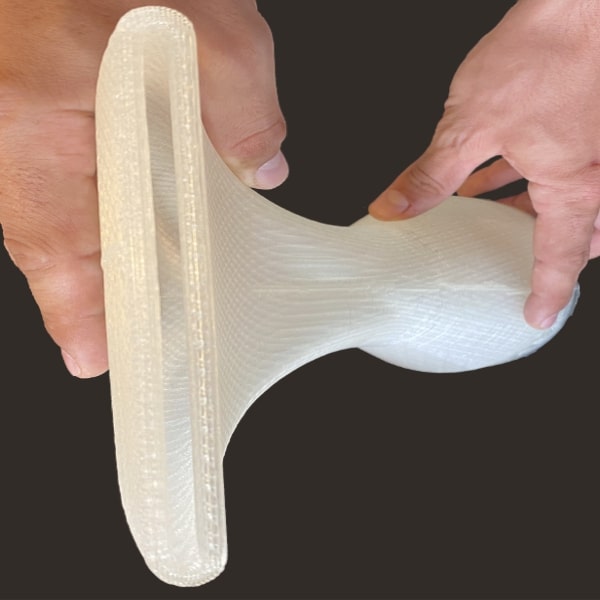

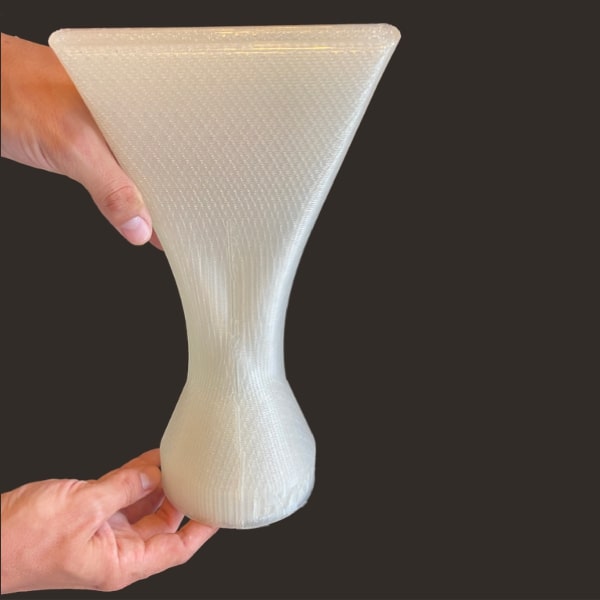

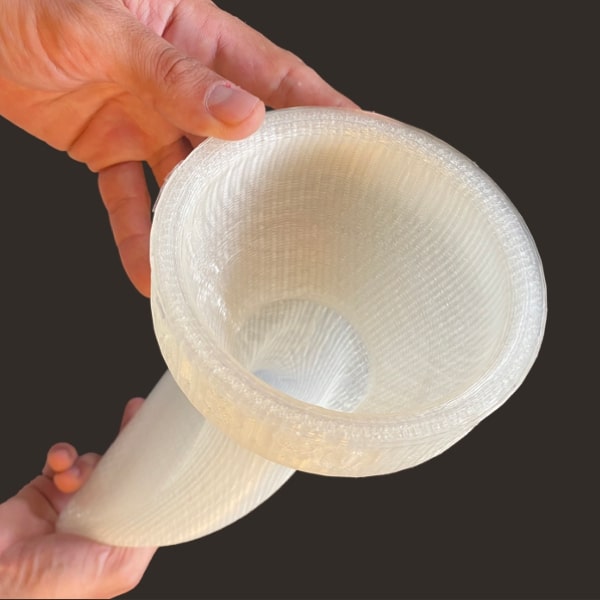

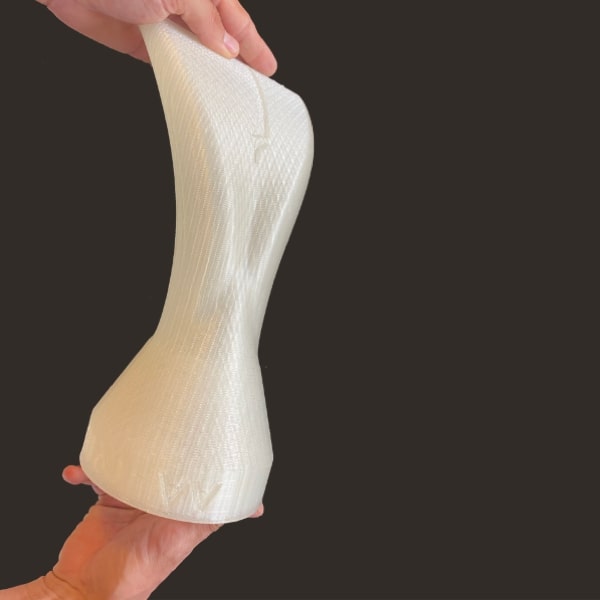

This very large nozzle has been manufactured in PLA, a bio-degradable material generally used in 3D printing for prototyping applications. This part is a scale-up of the Pam 3D printer air blowing nozzles, dedicated to adjust the temperature of the current layer of the part being printed.

Due to its easy-to-print behavior, PLA is a good and inexpensive prototyping material.

Material information
  • Supplier: Natureworks
  • Material: PLA
  • Grade: IngeoTM 2003D

Contact us

Discover the technology

Process configuration

  • 3D printer: New Pam Series P
  • Printing time: 11h 20 mn
  • Nozzle size: Ø 0.8 mm
  • Part weight: 410.90 g
  • Layer height: 0.6 mm
  • Material cost: € 2.46
