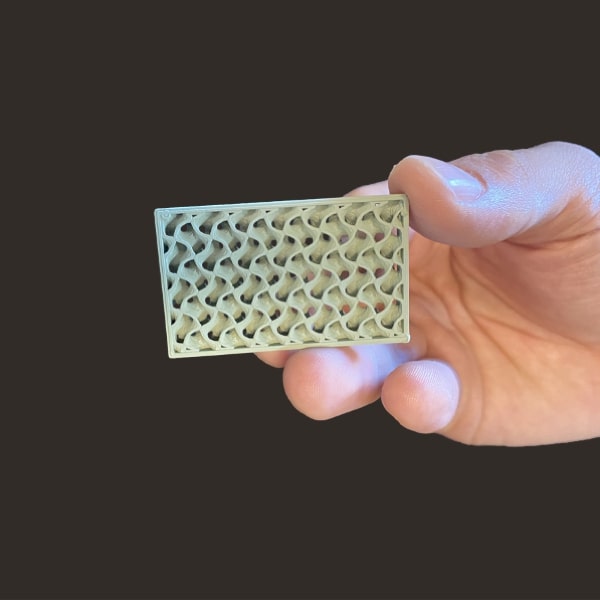

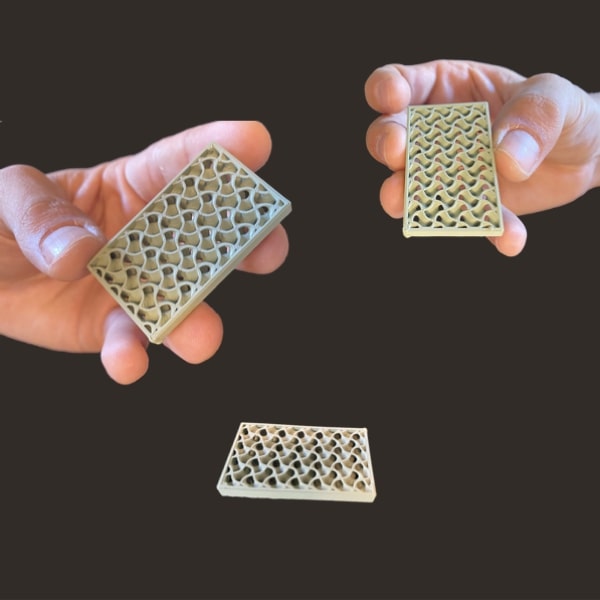

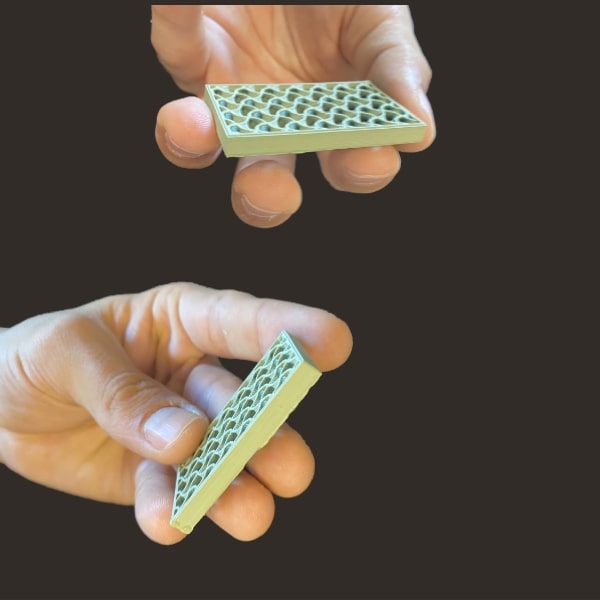

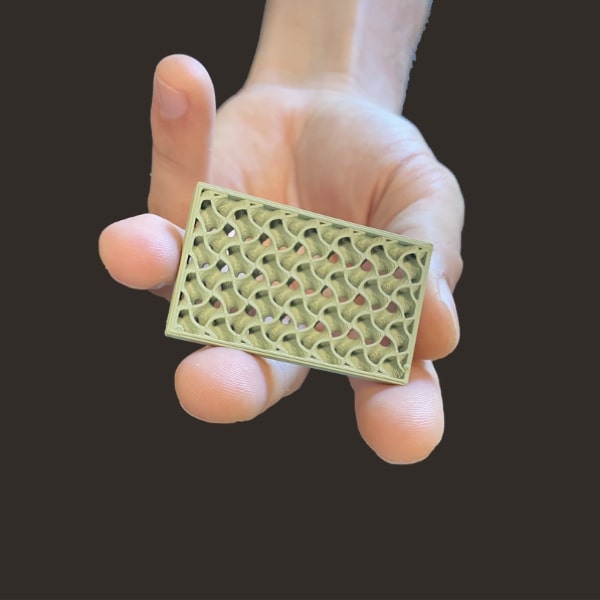

Ceramic Lattice Structure (green state)
Part presentation
Manufactured with Pam Series MC, the 3D printer dedicated to metal and ceramic applications, this lattice structure is made of Ceramic X and is presented at the green stage (before debinding & sintering steps).
This part served to demonstrate impossible-to-manufacture-otherwise geometry and its ability to improve the refracting behavior of the material.
Material information
- Supplier: Solcera
- Material: Aluminium oxide
- Grade: Al2O3
Process configuration
- Printing time: 2h 20 mn
- Nozzle size: Ø 0.6 mm
- Part weight: 16.01 g
- Layer height: 0.2 mm
- Material cost: € 0.64
