pam o2 MC
Metal & ceramic applications
- Full setup control
- Most profitable PIM-Like solution
- No volatile powders for no health risks
- Multi-material
- Same PIM post-processing
- Compatible with thermoplastics
3D printer specifications
Physical Dimensions
| Diameter | 834 mm |
| Height | 925 mm |
| Weight | 95 Kg |
Main specifications
| 3D printing process | PAM |
| Number of extruder | 2 to 4 |
| Compatible materials | Metal & Ceramic feedstocks (Injection moulding grades) |
| Maximum print volume | Ø300 x H300 mm (no radiant disc) Ø270 x H300 mm (with radiant disc). |
| Nozzles sizes | Ø 0.25 - 0.40 - 0.60 - 0.80 - 1.00 - 1.20 - 1.50 - 2.00 |
| Stepper motor resolution | 40µm (Z) and 5µm (X,Y) |
| Maximum extrusion temperature | 450°C |
| Maximum print bed temperature | 150°C and 200°C in options |
| Heating room | up to 90°C |
| Radiant disc | up to 300°C |
| Supplied Software | Honeyprint & Cura by Pollen AM |
- Material research
- Multi-extrusion research
- Prototypes & concept validation
- Material validation
- Functional testing
- On demand & local production
- Support to industrialization
- Tools, jigs & fixtures
- and so many more ...

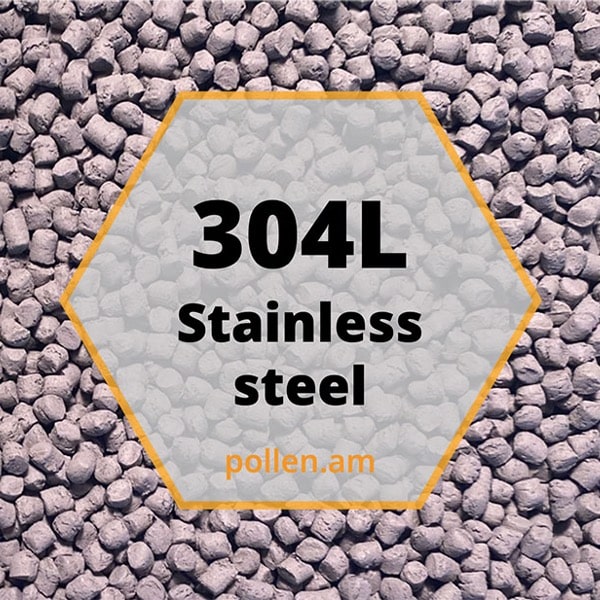

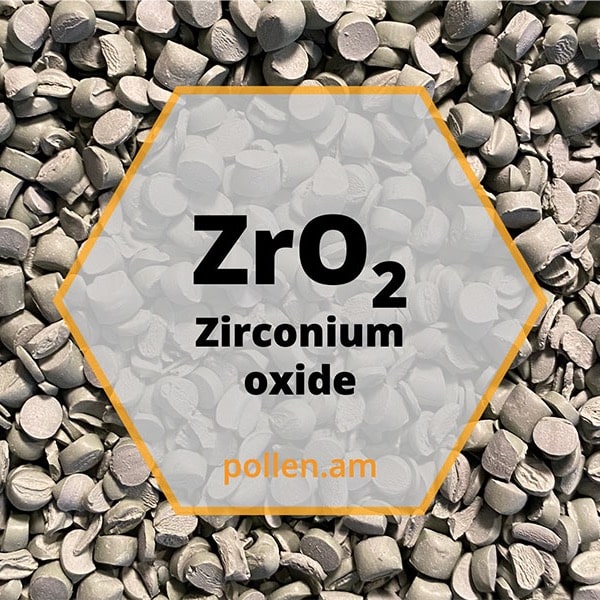

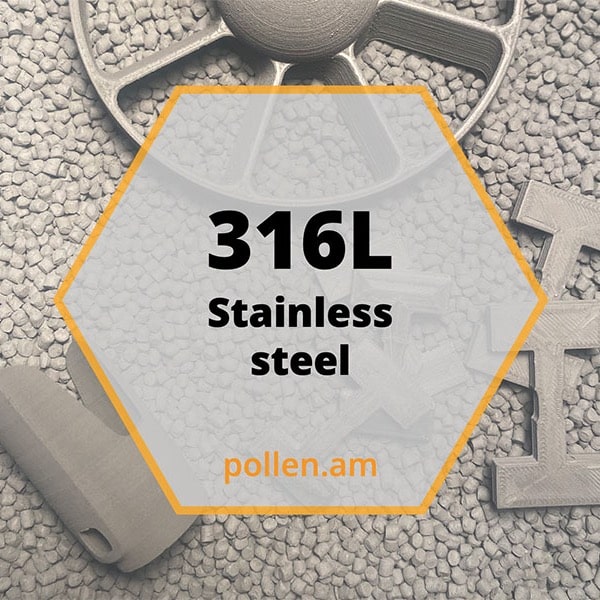

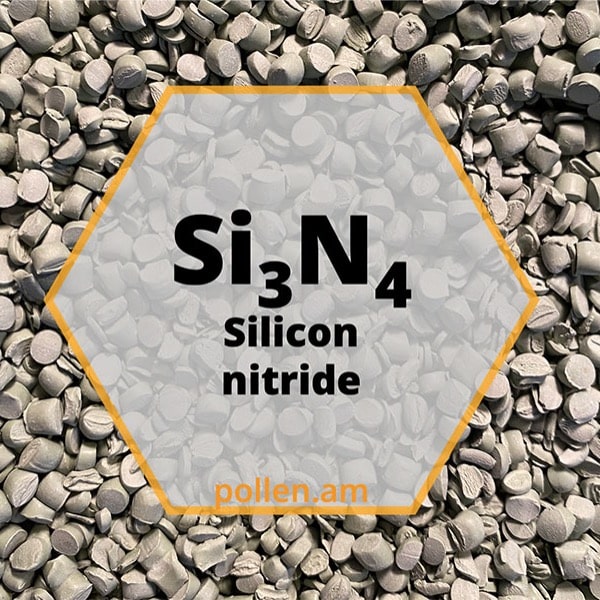

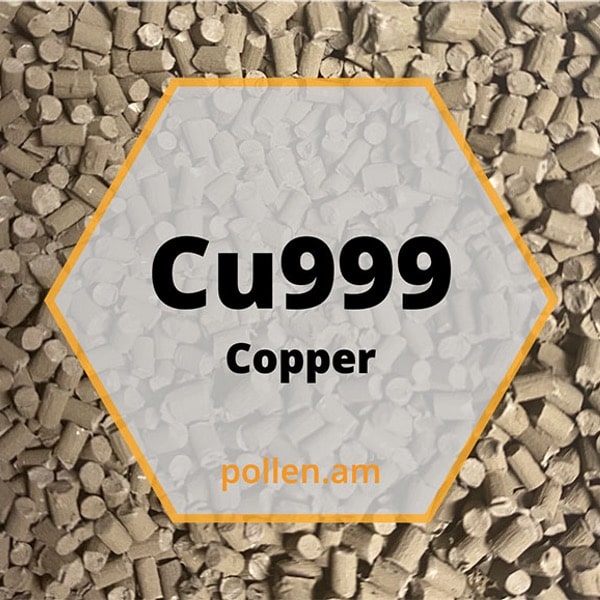

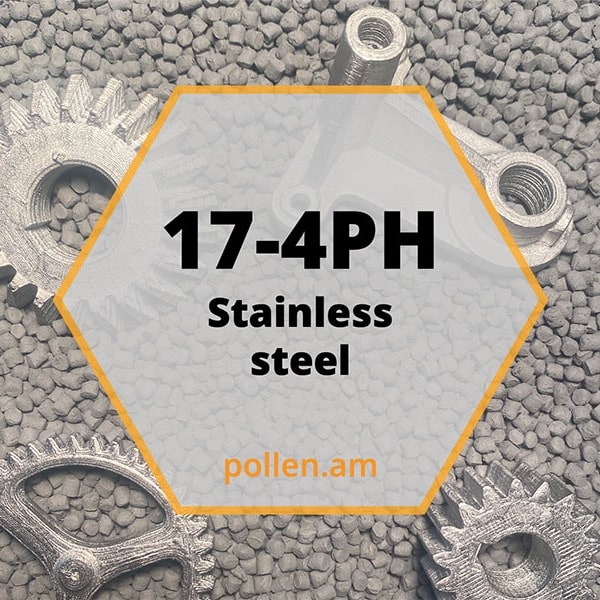

The widest range of metals and technical ceramics available
Gain access to an exhaustive industrial materials catalog, by using feedstocks already validated, by validating new ones, or simply by creating your own formulations.

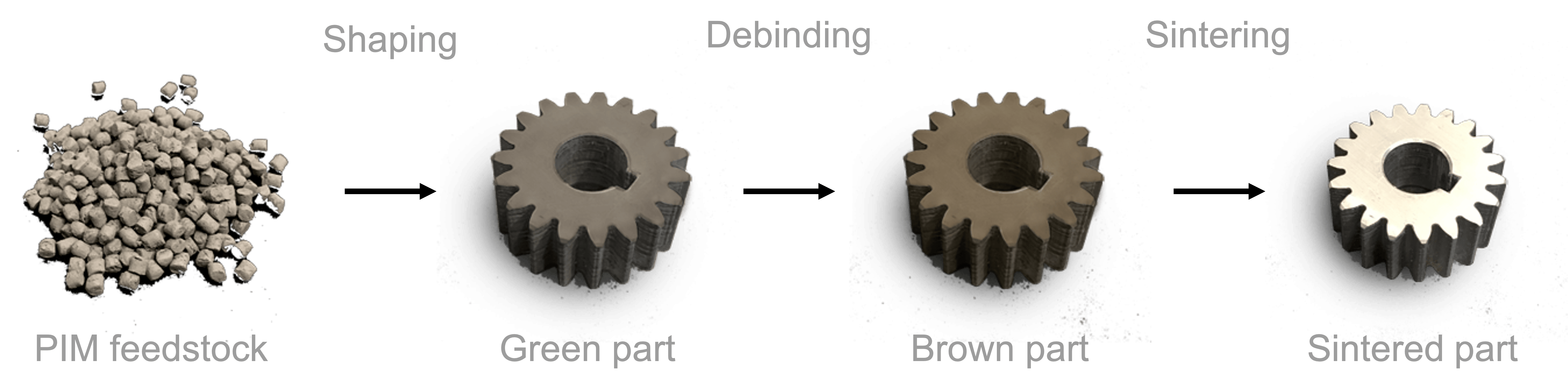

A proven industrial process
suitable for 3D printing
A secure workflow designed for every type of activity.

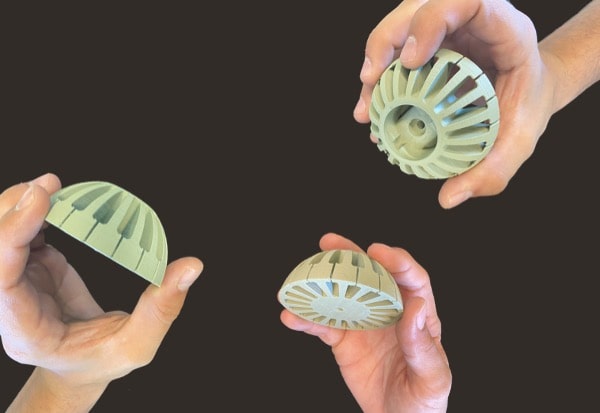

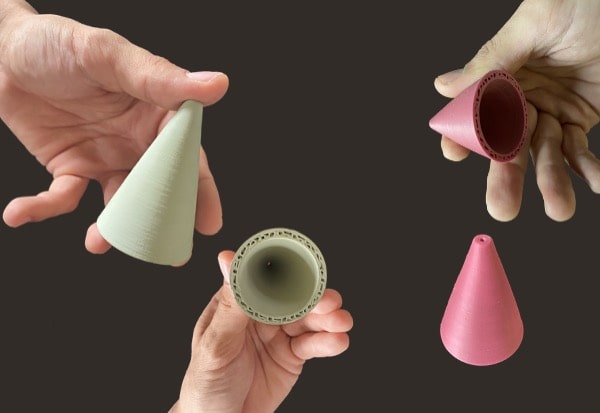

Discover Metal and Ceramic 3D printed parts
